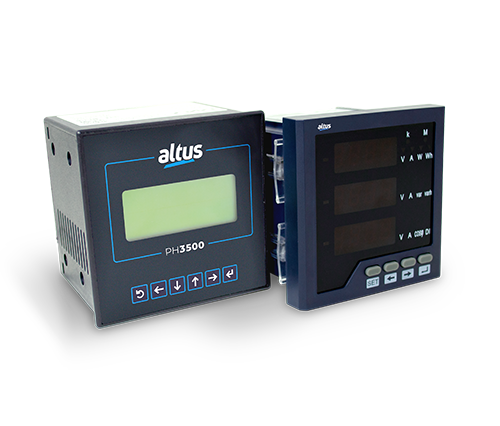

Power Multimeter

High-efficiency and stable power supplies, designed for easy TS35 rail mounting, with a power-on indicator

Available in two cost-effective models, the Phase Series power meters are designed to meet a variety of needs for monitoring and controlling power generation and distribution systems. These devices can also be used in electrical installations and for energy cost allocation, giving you greater control and connectivity across your industrial processes. With Altus power meters, you can easily track whether your business is using energy smartly.

Discover whether your business is consuming energy efficiently and intelligently with Altus multimeters.

Accurate data to help you make the right decision

The PH3100 is an energy multimeter capable of measuring electrical quantities in real time such as voltage, current, power (active, reactive and apparent), power factor, phase angle and active and reactive power demand, among others.

The PH1600 model is suitable for low-complexity machines and processes, offering a 3-line by 4-column LED display, 4 keys and built-in RS-485 serial communication interface. With IP65 protection rating on the front display, it is completely dustproof and protected against water jets, ensuring durability even in the most demanding industrial environments.

The PH3500 is a more advanced model, featuring a 16-column by 4-line LCD screen, capable of displaying up to 64 characters at once. Designed to meet Industry 4.0 standards, it includes an integrated Ethernet interface and MQTT support, enabling seamless interaction with a wide range of IoT equipment and systems. The PH3500 also has a built-in RS-485 serial interface and an IP54-rated front panel, providing resistance to dust and water splashes.
Industry 4.0

Industry 4.0

The devices support MODBUS-RTU, MODBUS-TCP, MQTT, and SNTP protocols, ensuring easy integration into modern industrial environments

Advanced Features

Advanced Features

Capable of measuring voltage and current harmonics (up to the 31st order) and storing data in mass memory for future analysis

Comprehensive Measurement

Comprehensive Measurement

These meters can be used for voltage, current, frequency, power, energy, and demand measurement applications

Seamless connectivity

Seamless connectivity

Equipped with 10/100 BASE-T Ethernet and RS-485 serial communication interfaces; the Phase Series meters ensure reliable data transmission across your network

Filters:

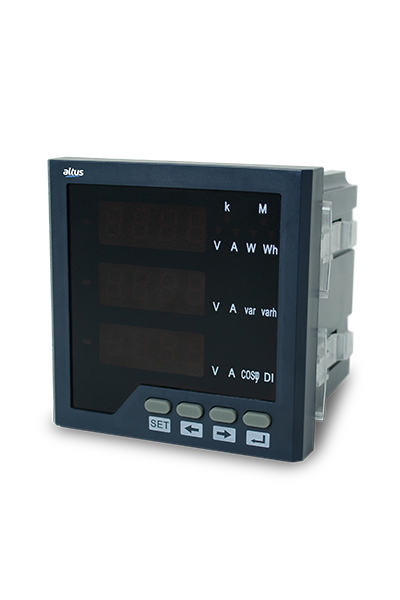

PH1600

PH1600

  • 1 RS-485
  • LED Display

The PH1600 is a multi-energy meter capable of measuring various electrical quantities in real time, such as voltage, current, active and reactive power, power factor and active and reactive power demand, among others. Ideal for less complex applications, the equipment offers precision and reliability in monitoring electrical consumption.

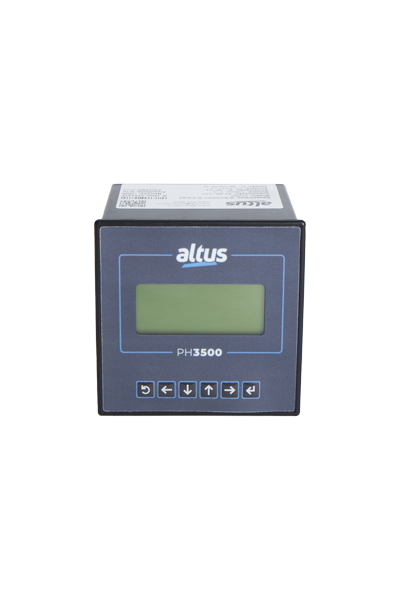

PH3500

PH3500

  • 1 Ethernet
  • 1 RS-485
  • LCD Display
  • Harmonic Measurement

The PH3500 is an energy multimeter developed to meet the needs of Industry 4.0, capable of measuring electrical quantities and connecting to various intelligent IoT platforms in the cloud.

Nenhum produto encontrado.

Downloads

Documents
Programming Software
Catalog
Product Portfolio
Presentation
Apresentação Série Phase (Multimedidores)
CAD
PH1600 (DWG 2D)
PH1600 (STEP 3D)
PH3500 (DWG 2D)
PH3500 (STEP 3D)
Features
Características Técnicas Multimedidores PH1600 e PH3500
Características Técnicas Série Phase (Multimedidores)
Installation Guide
Guia de Instalação Multimedidor PH3100
Guia de Instalação PH3x20 (4 SD a Relé)
Guia de Instalação PH32xx (Multimedidores)
Manuals and Handouts
Manual de Utilização Multimedidor PH1600
Phase Series (PH31xx) Manual
Manual de Utilização Multimedidor PH3500
Phase MANAGER Manual
Notes
Notification of Phase Series Production Scheme (NRP0010)
Notification of Phase Series Production Scheme (NRP0036)
GSD
PH3251 (GSD)
Software
Phase MANAGER Lite 2.11.52
Phase MANAGER Standard 2.11.52
Multimedidor de Energia PH3101 (versão 2.20)
