Nexto NJ

Speed and optimal cost efficiency for system control

Beyond offering robust equipment for large-scale applications, the programmable controllers in the Nexto Series are also equipped with CPUs and I/O modules specifically designed for small to mid-sized systems.

Compact and versatile, the NJ modules are ideal for space-constrained solutions, providing flexibility, reliable performance, and ease of integration with other Nexto products.

Versatility and efficiency for your business

Maintaining the essential characteristics of the other PLCs in the Nexto System, the NJ equipment offers the best cost-effectiveness for machines and distributed systems.

With a compact design and high performance, these modules are fully compatible with the series’ main products—including CPUs, racks, communication modules, and field networks—ensuring flexibility, easy integration, and efficiency in small- and medium-scale applications.

Flexible

Ideal for small to mid-sized machines and distribution systems

Efficient

Fast processing and high performance in an easy-to-use platform

Scalable

Expandable to support up to 10 I/O modules within a single CPU rack

Versatility

Compatible with all CPUs across the Nexto System lineup

Ampla variedade de recursos para comunicação

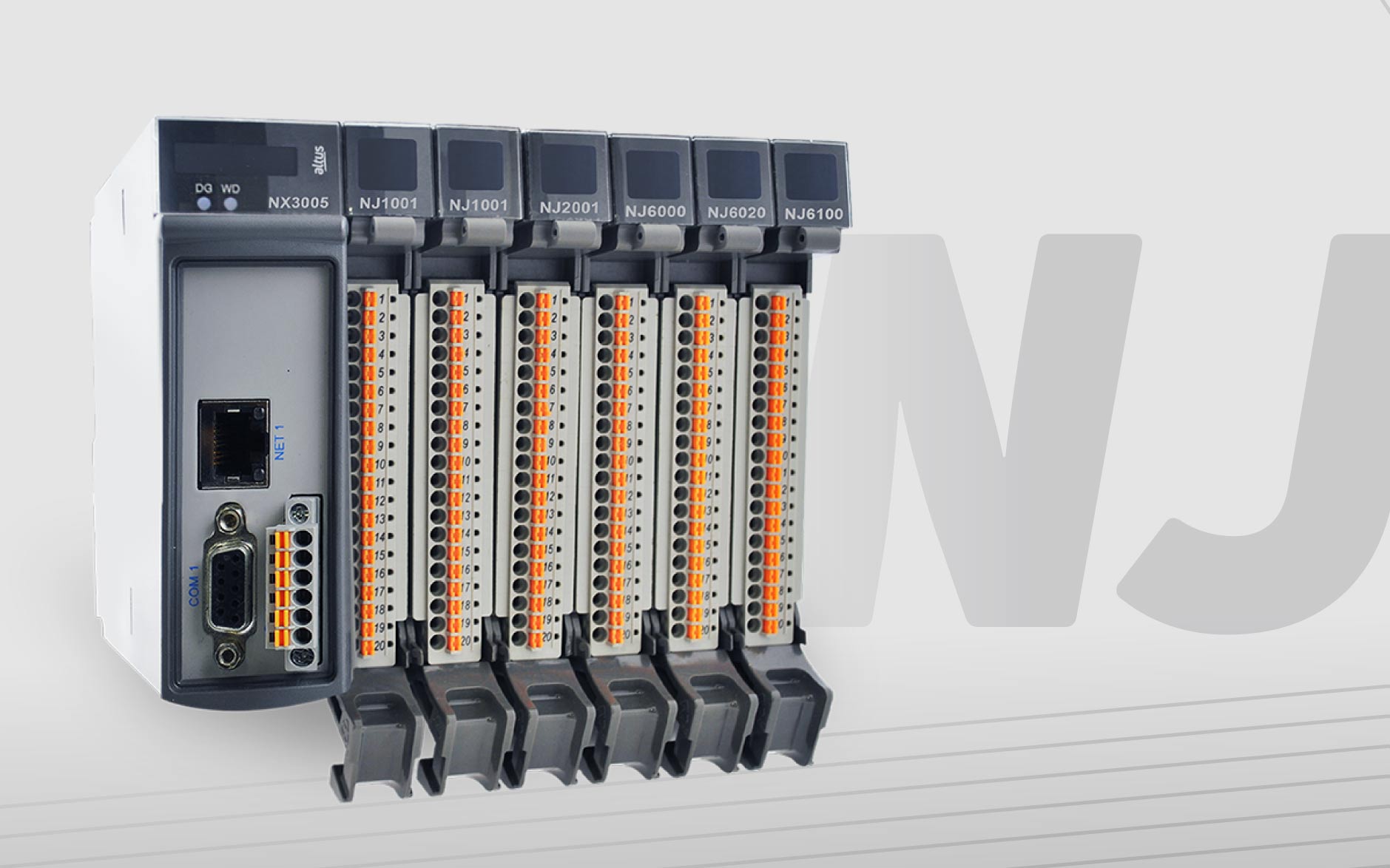

Wide range of communication features

The digital I/O options make this series an extremely versatile, safe, and space-saving solution. Each 18mm-wide module supports 16 points, with source type digital outputs and sink/source inputs that are opto-isolated and optimized for 24 Vdc operation.

The analog options are available in different configurations, including voltage and current inputs/outputs, as well as options for temperature measurement using RTD (Resistance Temperature Detectors) sensors and thermocouples. The series also includes a mixed voltage/current module with 12-bit resolution.

Each module supports individual channel configurations, allowing you to customize parameters such as scales, sensor types, and filters through the MasterTool IEC XE programming software.

Filters:

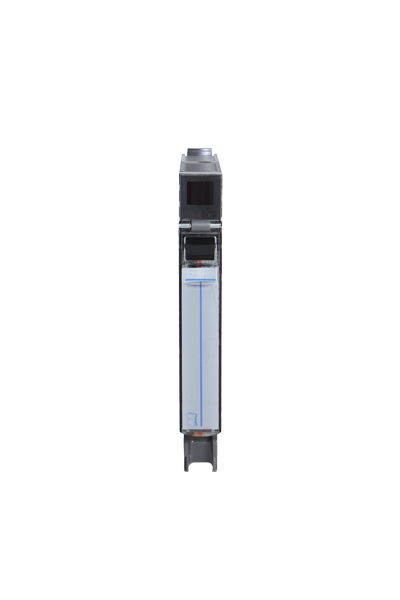

NJ1001

Digital Input

NJ1001 module offers 16 isolated source/sink inputs for general use and occupies only one slot on the rack.

NJ1005

Digital Input
Digital Output
Transistor

NJ1005 mixed module offers 8 protected source-type digital outputs and 8 isolated source/sink digital inputs for general use and uses only one slot on the rack.

NJ2001

Digital Input
Transistor

NJ2001 module offers 16 isolated outputs for general use and uses only one slot on the rack.

NJ6000

Analog Input
Surge protection
Voltage/Current 16 Bits

NJ6000 module offers eight individually configurable analog inputs for voltage or current and uses only one slot on the rack.

NJ6001

Analog Input
Voltage/Current 12 Bits

NJ6001 module offers 6 individually configurable analog voltage or current inputs, which allow for reading sensors, and uses only one slot on the rack.

NJ6005

Digital Input
Parameterizable filters
Digital Output
Voltage/Current 12 Bits
Transistor

NJ6005 mixed module offers 6 individually configurable analog voltage or current inputs and 4 analog voltage or current outputs, which allow for the reading and writing of sensors and actuators.

NJ6010

Analog Input
Parameterizable filters
Termopar

NJ6010 module has 8 analog thermocouple inputs that can be individually configured for different thermocouple types. This module also provides different temperature scales in Celsius or Fahrenheit.

NJ6011

Analog Input
Parameterizable filters
Termopar

NJ6011 module has 4 analog thermocouple inputs that can be individually configured for different thermocouple types. This module also provides different temperature scales in Celsius or Fahrenheit.

NJ6020

Analog Input
Parameterizable filters
RTD
Support for different types of sensors

NJ6020 module offers 8 individually configurable analog inputs that allow for reading RTD-type (Resistance Temperature Detectors) temperature sensors, supporting a wide variety of sensors and resistance ranges, and uses only one slot on the rack.

NJ6100

Analog Output
Voltage/Current 16 Bits

NJ6100 module offers 4 individually configurable analog voltage or current outputs and uses only one slot on the rack.

NJ6101

Analog Output
Voltage/Current 12 Bits

NJ6101 module offers 4 individually configurable analog voltage or current outputs, which allow for writing to sensors and actuators, and uses only one slot on the rack.
