Série X2

Control your industrial processes with the X2 Series.

The X2 Series is an innovative Human–Machine Interface (HMI) solution that integrates advanced graphical tools with highly functional capabilities.

Featuring robust hardware, high security, and seven screen-size options, the products in this line offer the versatility to meet a wide range of applications in the Brazilian industrial market.

Control and supervision for a wide range of applications

The X2 Series HMIs come in three versions: BASE, PRO, and Extreme, each designed to meet the demands of industrial environments. With a combination of plastic and cast aluminum, these HMIs are lightweight yet durable, making them ideal for a wide variety of industrial applications. The open platform allows full customization of both appearance and functionality, while the high-performance hardware, long-lasting backlight, TFT technology for brightness control, and widescreen display with 30% more screen space offer robust features to enhance user experience and confidence.

The series’ enhanced connectivity enables real-time data exchange between controllers, ensuring efficiency and reliability across a wide range of industrial projects. Whatever your application’s requirements, these HMIs deliver effective solutions to drive industrial automation with safety and high performance.
Unmatched Performance

Unmatched Performance

The series’ HMIs are designed to deliver efficient application development and ensure safe operation. With robust hardware, advanced features, and high processing power, they provide fast response times, reliable execution, and optimized performance.

Intuitiveness.

Intuitiveness.

The HMIs feature integrated engineering and navigation tools that make their use simpler, faster, and more efficient. With a user-friendly interface and user-focused features, they facilitate the creation, operation, and maintenance of applications.

Interactivity.

Interactivity.

Ideal for industrial applications using operation and visualization terminals, providing a direct, practical, and efficient interaction experience with processes.

Versatility

Versatility

Versatility, security, and high performance to maximize your machine’s productivity

Guaranteed performance and reliability for your process

Guaranteed performance and reliability for your process

The X2 Series stands out for its engineering excellence and innovative design. Its high-performance hardware, specifically developed for the graphical capabilities of the X2 software, ensures durability and reliability. Available in screen sizes ranging from 4 to 21 inches, these HMIs offer widescreen displays with 30% more usable space, making it easier to implement complex systems. Each unit also comes with an unlimited runtime version of the X2 software.

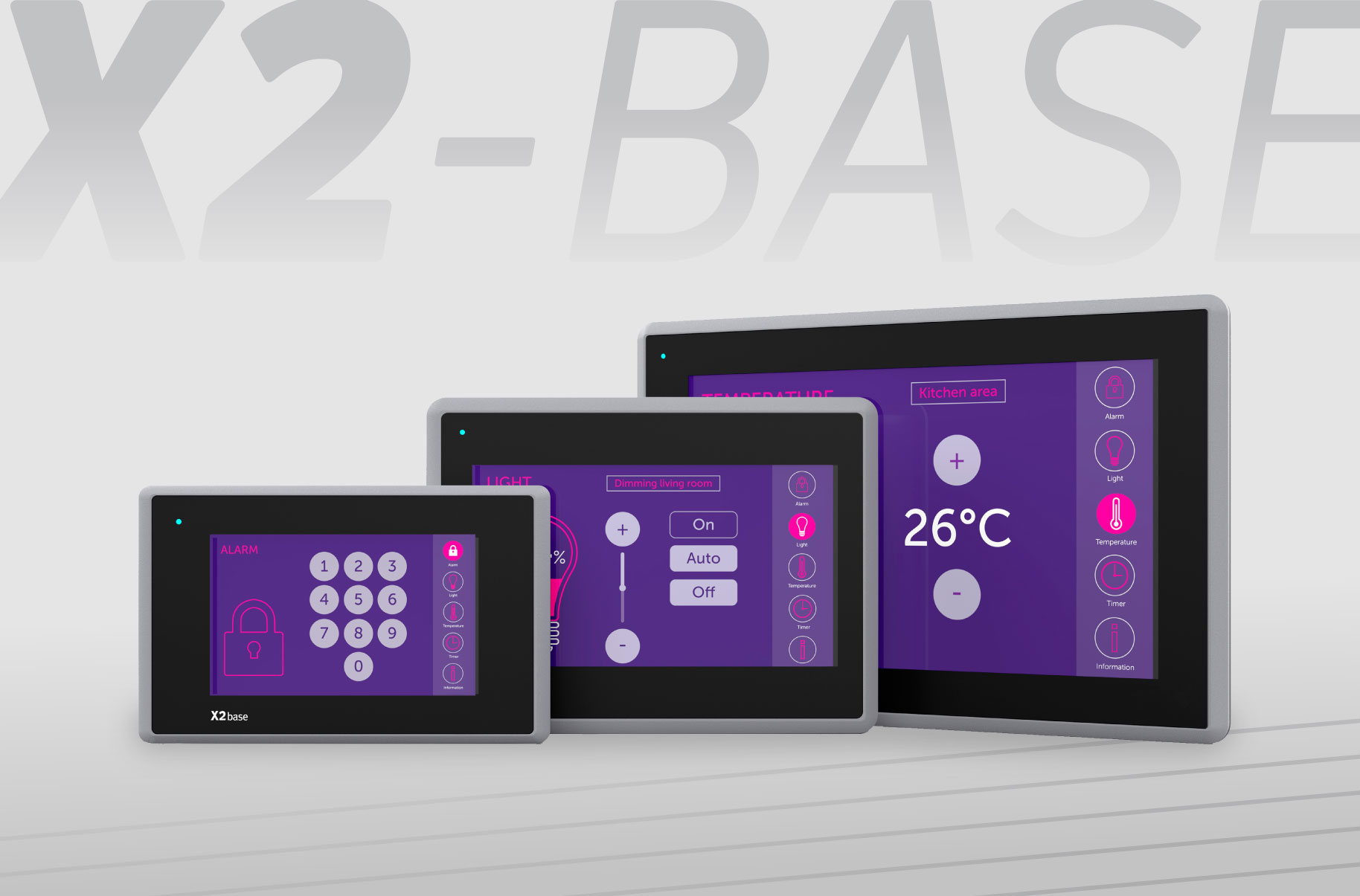

Speed and efficiency for machines with the X2-BASE line

Speed and efficiency for machines with the X2-BASE line

The X2-BASE line, powered by the ARM9 processor, delivers efficient, high-performance solutions for small to medium-scale applications, offering an outstanding cost-benefit ratio for machine manufacturers.

Equipped with an ARM9 processor, the series’ HMIs deliver efficiency, high performance, and rapid response, ensuring reliable operation and enhanced productivity in industrial automation processes.

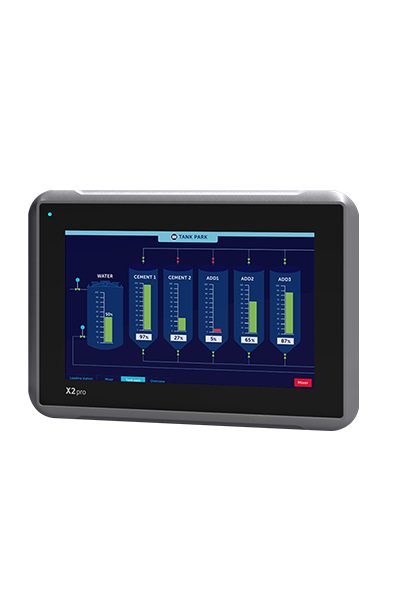

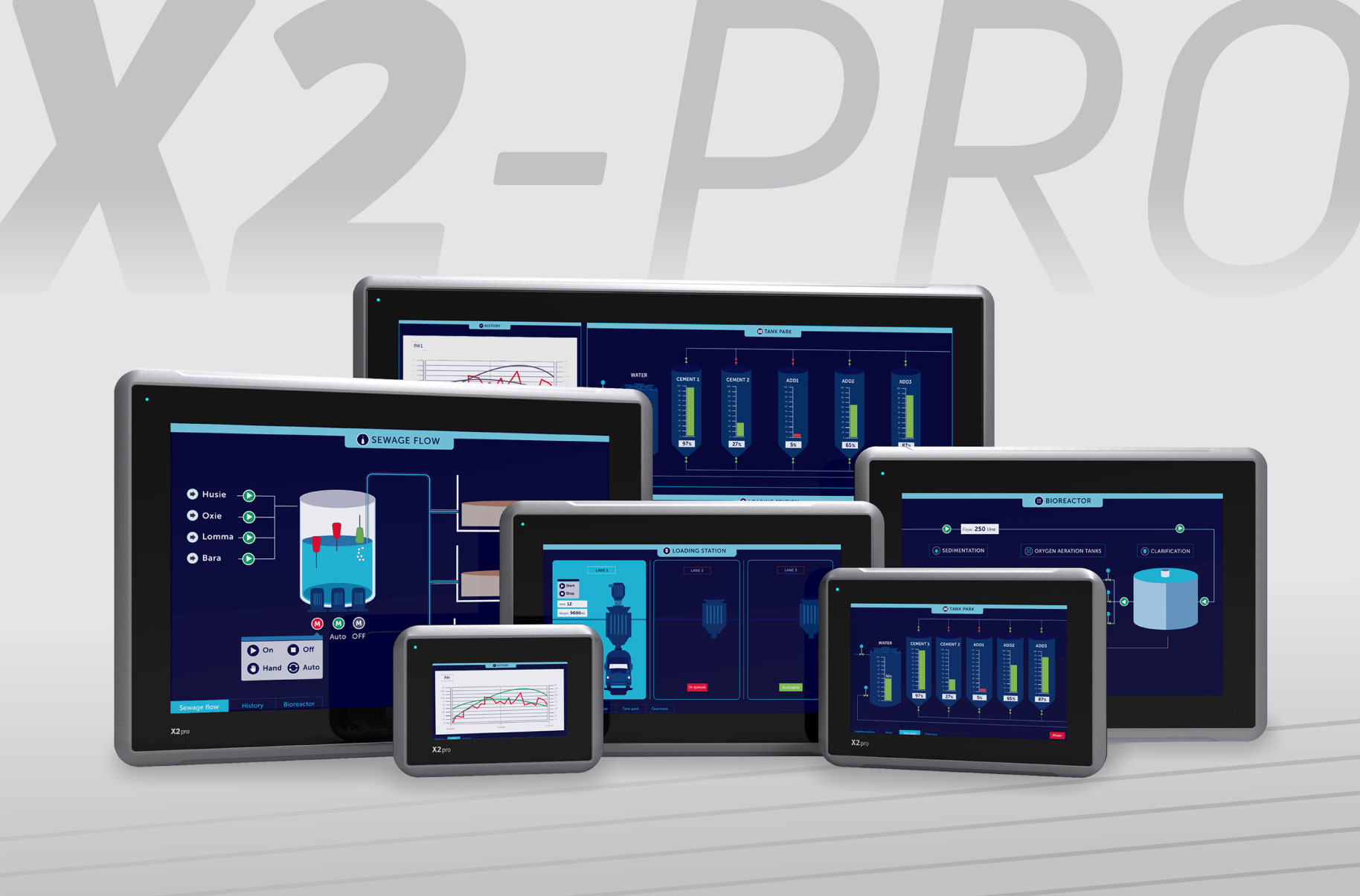

High performance for large-scale applications with the X2-PRO line

High performance for large-scale applications with the X2-PRO line

The X2-PRO series HMIs are ideal for automating advanced applications, engineered to meet complex, high-performance demands across a wide range of industrial sectors.

Equipped with an ARM Cortex-A9 processor, these interfaces deliver high-speed screen transitions and agile processing of large data volumes, ensuring rapid response times, operational efficiency, and a smooth, reliable user experience in demanding environments.

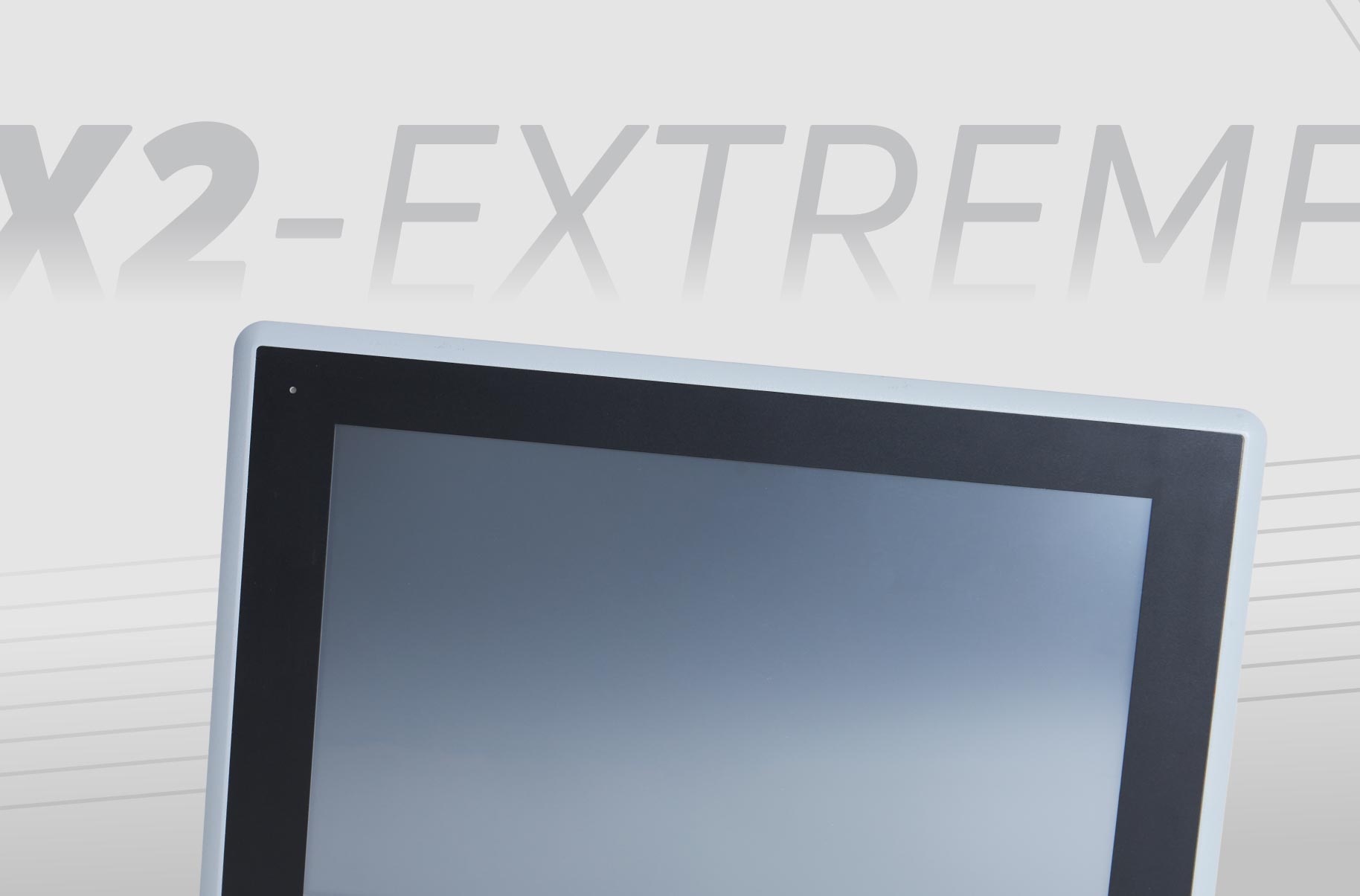

Unmatched performance and durability with the EXTREME line

Unmatched performance and durability with the EXTREME line

Certified by the most stringent international validation bodies, the X2 Extreme series HMIs are designed to deliver high availability and superior performance even in the most hostile and demanding environments.

Available in 7-, 12-, and 15-inch models, these devices can operate across a wide temperature range from –30 °C to +70 °C, withstand high levels of vibration and high-pressure jet wash, making them ideal for heavy industries, outdoor environments, and applications demanding extreme robustness and reliability.

Filters:

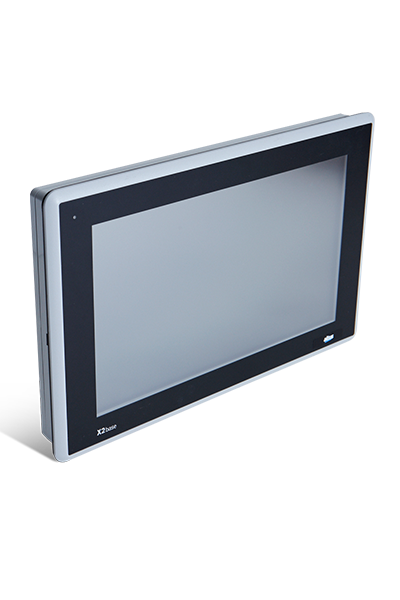

X2-BASE-10-V2

X2-BASE-10-V2

  • 1 Ethernet
  • 1 USB
  • 4 Serial
  • 10" Display

The X2-BASE-5-V2 HMI is a color X2 BASE 5 V2 operator terminal, graphic, touchscreen, 5” LCD-TFT display

X2-BASE-5-V2

X2-BASE-5-V2

  • 1 Ethernet
  • 1 USB
  • 4 Serial
  • 5" Display

The X2-BASE-5-V2 HMI is a color X2 BASE 5 V2 operator terminal, graphic, touchscreen, 5” LCD-TFT display

X2-BASE-7-V2

X2-BASE-7-V2

  • 1 Ethernet
  • 1 USB
  • 4 Serial
  • 7" Display

The X2-BASE-5-V2 HMI is a color X2 BASE 5 V2 operator terminal, graphic, touchscreen, 5” LCD-TFT display

X2-PRO-10

X2-PRO-10

  • 1 USB
  • 2 Ethernet
  • 3 Serial
  • 10" Display

The X2-PRO-7 HMI is a color, graphic, touchscreen, 7" LCD-TFT display operator terminal

X2-PRO-12

X2-PRO-12

  • 1 USB
  • 2 Ethernet
  • 3 Serial
  • 12" Display

The X2-PRO-7 HMI is a color, graphic, touchscreen, 7" LCD-TFT display operator terminal

X2-PRO-15

X2-PRO-15

  • 1 USB
  • 2 Ethernet
  • 3 Serial
  • 15" Display

The X2-PRO-7 HMI is a color, graphic, touchscreen, 7" LCD-TFT display operator terminal

X2-PRO-21

X2-PRO-21

  • 1 USB
  • 2 Ethernet
  • 3 Serial
  • 21" Display

The X2-PRO-7 HMI is a color, graphic, touchscreen, 7" LCD-TFT display operator terminal

X2-PRO-4

X2-PRO-4

  • 1 Ethernet
  • 1 USB
  • 3 Serial
  • 4.3" Display

The X2-PRO-7 HMI is a color, graphic, touchscreen, 7" LCD-TFT display operator terminal

X2-PRO-7

X2-PRO-7

  • 1 Ethernet
  • 1 USB
  • 3 Serial
  • 7" Display

The X2-PRO-7 HMI is a color, graphic, touchscreen, 7" LCD-TFT display operator terminal

Nenhum produto encontrado.
