HX Series

Rugged performance for the energy market’s demands

Conceived based on international standards IEC 61850 and IEC 61131-3, the Remote Terminal Units (RTUs) of the HX series are ideal for controlling electrical Power Generation, Transmission, and Distribution processes.

Designed to meet the highest standards of reliability and interoperability, these RTUs ensure secure communication, fast response, and efficient integration, making them the right choice for critical applications in the electric power sector.

Ensure the availability and stability of your application with the HX series

Conceived to overcome the challenges of Electrical Power Generation, Transmission, and Distribution applications, the HX series combines advanced functionalities that ensure reliability, performance, and high availability in critical environments. Among its main differentials are: Power supply redundancy, CPU redundancy in a single rack, Support for DNP3 and IEC 61850 (MMS and GOOSE) protocols, Compliance with ONS submodule 2.7, meeting the regulatory requirements of the Brazilian electrical sector.

With a modular architecture, the HX RTUs offer a wide range of input and output modules that can be combined with their powerful 32-bit CPU and a high-speed deterministic Ethernet bus, enabling scalable support for a variety of applications.

The embedded features prioritize high performance, connectivity, and availability, without compromising visibility and operational agility in the field, facilitating activities such as maintenance, commissioning, and installation. The HX series is the ideal solution for those seeking robustness, security, and efficient integration in modern and complex electrical systems.
Fast processing

Fast processing

Fast processing and quick response times for applications in power generation, transmission, and distribution

Durability

Durability

Products with a practical design, easy installation and maintenance, built to operate under severe conditions, ensuring stable and long-lasting performance.

Reliability

Reliability

Intelligent and precise diagnostics for systems that cannot stop, along with redundancy and I/O modules for high data traffic to handle large volumes of data with agility, security, and reliability, ensuring maximum availability even under extreme conditions.

Versatility

Versatility

With I/O modules available in the 24 Vdc and 125 Vdc ranges, Hadron Xtorm products offer versatility and scalability for applications ranging from small systems to large industrial plants.

A CPU built for high-speed applications

A CPU built for high-speed applications

The HX series features a 32-bit PowerPC-based CPU, with high-speed data processing and communication. It meets the requirements of the most modern protocols used in these applications. Integrated functions such as online programming, high memory capacity, and two serial channels are also available. 6 Ethernet ports, a memory card slot, and program updates further integrate the CPU's features.

It features several integrated functions, such as online programming, high memory capacity, and two serial channels. 6 Ethernet ports are available for programming, use in IEC 61850, IEC 60870-5-104, DNP3, MODBUS TCP, OPC DA networks, and an embedded web server. A memory card slot for application source code storage and program updates integrates the CPU's features.

Redundancy for mission-critical applications

Redundancy for mission-critical applications

With extremely rugged and highly durable hardware, HX products can be installed in locations with mechanical vibration and extended operating temperatures. The series is also qualified for applications in power plants, powerhouses, or near large electrical devices, as it has high immunity requirements for electrostatic discharges and electromagnetic noise, characteristics commonly present in these applications.

Reliable, the HX RTU offers diverse architectures that allow its use from simple systems to large and complex projects where high availability is an essential factor. In addition, the products in the line feature hot-swapping capability, facilitating module replacement without the need to de-energize the system, characteristics essential for applications that cannot stop.

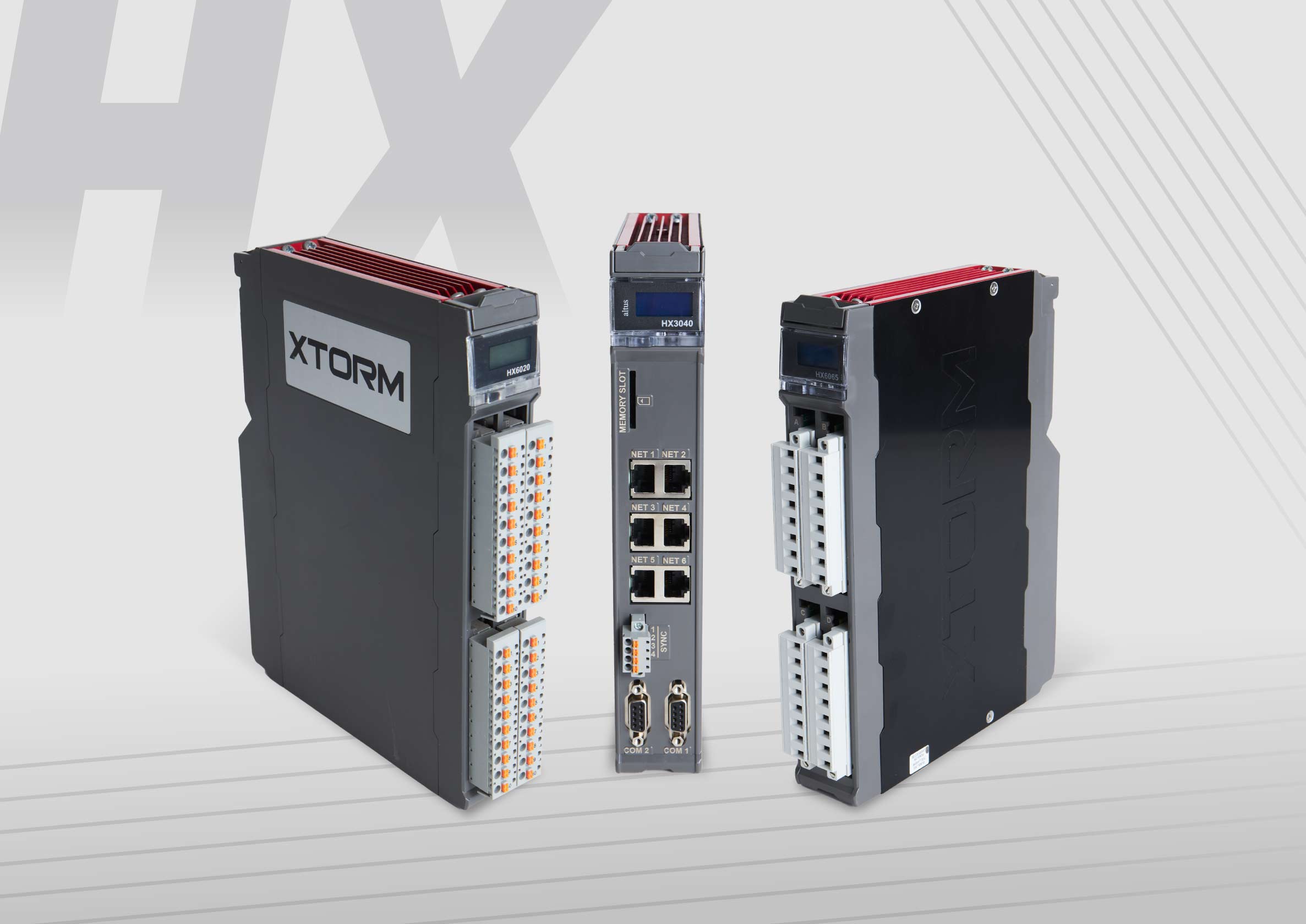

Comprehensive communication modules and expansion options

Comprehensive communication modules and expansion options

The HX series features a versatile architecture, allowing for the development of customized applications that meet specific business needs, regardless of size. With the possibility of I/O module expansion, the series supports up to 8 remote racks, and a single CPU can control up to 2048 points.

The high density of points and graphical display available in the series allow for checking the status of each I/O for local diagnostics. The user can view diagnostic information for any module of the system directly on the graphical display, with just one touch of the diagnostic button via One Touch Diag. This information can also be accessed through network protocols or even through our configuration software, MasterTool.

Another standout feature is the easy installation and removal of terminal blocks, thanks to a spring-loaded system for connecting field wiring.

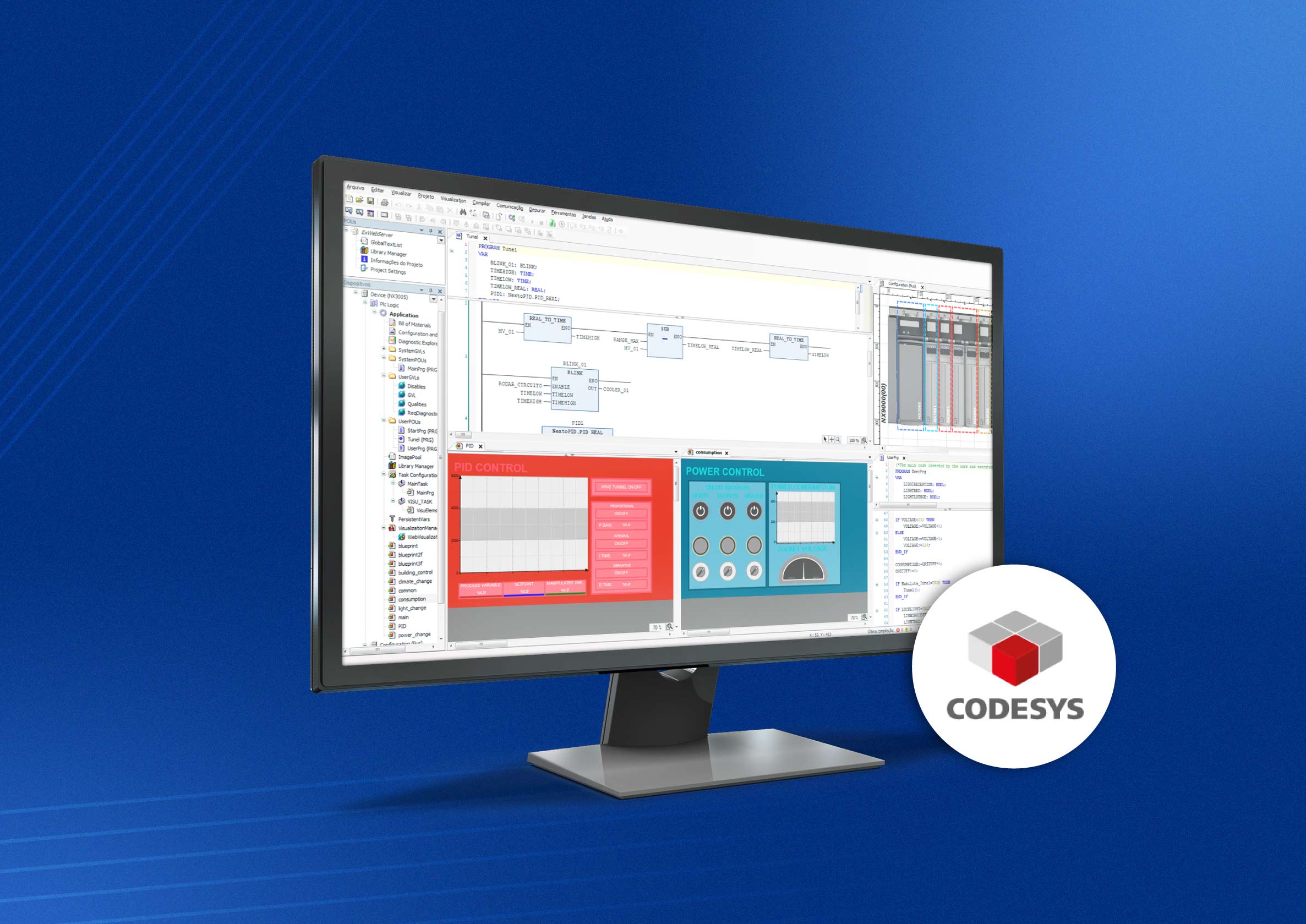

Enhanced connectivity with MasterTool 3.70

Enhanced connectivity with MasterTool 3.70

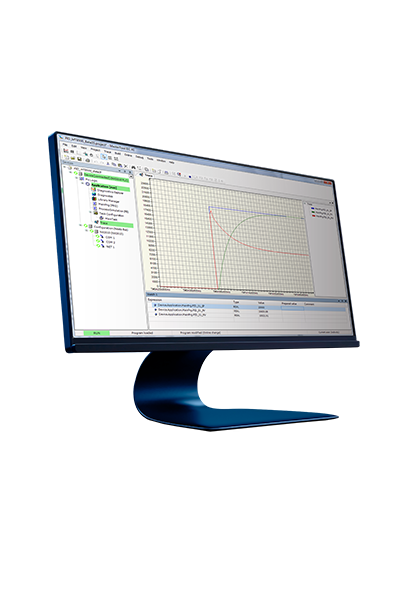

MasterTool IEC XE is a complete tool for configuring, programming, debugging, and simulating user applications, offering flexibility, practicality, and high performance in the development of automation projects.

Based on CODESYS technology, the software provides an intuitive and powerful interface, allowing, among other features, the import of data from spreadsheets, facilitating the parameterization of modules and the mapping of variables in the communication protocols supported by the HX CPU.

Ideal for applications requiring precision, agility, and efficient integration, MasterTool is a solution designed for those seeking total system control with ease of use.

Filters:
HD3000

HD3000

    A UTR HD3000 é uma moderna solução para supervisão e controle de sistemas de geração e distribuição de energia elétrica. As UTRs têm como objetivo a automação de subestações de energia e centrais elétricas, permitindo a execução de funções de supervisão, telecomando e intertravamento.

    HD3001

    HD3001

    • IEC-61131-3

    A UTR HD3001 é uma moderna solução para supervisão e controle de sistemas de geração, transmissão e distribuição de energia elétrica. É um sistema modular, com configuração flexível, composto de múltiplos processadores, várias opções de módulos de entrada e saída e protocolos de comunicação.

    HD3002

    HD3002

    • IEC-61131-3

    UTR HD3002 é uma solução para supervisão e controle de sistemas de geração, transmissão e distribuição de energia elétrica. É um sistema modular, com configuração flexível e composto de múltiplos processadores.

    HD8000

    HD8000

    • IEC-61131-3

    O software MasterTool Hadron XE HD8000 é a ferramenta de configuração, programação, comissionamento e diagnóstico das remotas UTR Hadron. Além das operações básicas de supervisão e telecomando, é possível a implementação de funções adicionais de intertravamento para a execução de comandos automáticos, a partir de condições específicas detectadas em entradas locais ou entradas provenientes de IEDs.

    HD8500

    HD8500

    • IEC-61131-3

    O MasterTool Xtorm é uma ferramenta completa para programação, depuração, configuração e simulação das aplicações do usuário. O software é baseado no conceito de ferramenta integrada, provendo flexibilidade e facilidade de uso permitindo aos usuários a configuração de mensagens GOOSE, parametrização de datasets e configuração de IEDs.

    HX1100

    HX1100

    • Digital Input

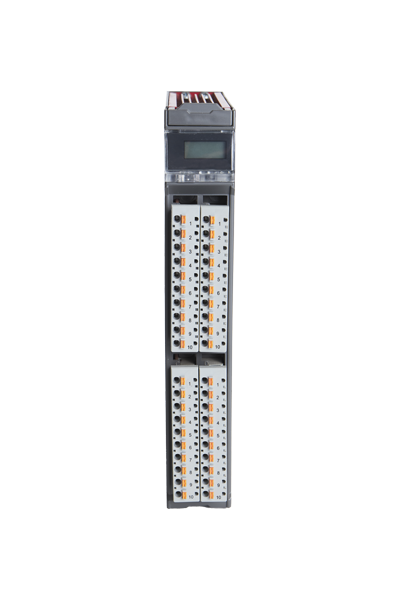

    The HX1100 module offers 32 isolated 24 Vdc source/sink digital inputs, with event logging functionality with 200 us accuracy and dual point mapping

    HX1120

    HX1120

    • Digital Input

    The HX1100 module offers 32 isolated 125 Vdc source/sink digital inputs, with event logging functionality with 200 us accuracy and dual point mapping

    HX2200

    HX2200

    • Digital Output

    The HX2200 module offers 16 24Vdc relay outputs with dry contact

    HX2300

    HX2300

    • Digital Output

    The HX2200 module offers 16 24Vdc relay outputs with dry contact and eight or 16 CBO (Check Before Operate)

    HX2320

    HX2320

    • Digital Output

    The HX2200 module offers 16 125Vdc relay outputs with dry contact and eight CBO (Check Before Operate)

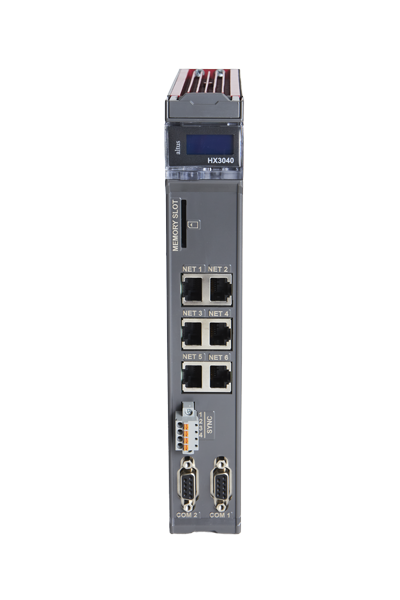

    HX3040

    HX3040

    • 2 Serial
    • 6 Ethernet Interfaces
    • SD Card
    • Hot Swap

    Based on 32-bit PowerPC, the HX3040 CPU features online programming, high memory capacity, two serial channels, six Ethernet ports and support for IEC 61850, IEC 60870-5-104, DNP3, MODBUS TCP and OPC DA protocols.

    HX6000

    HX6000

    • Analog Input

    The HX6000 module offers 16 analog inputs that can be individually configured as voltage or current input with different operating ranges configured by software.

    HX6020

    HX6020

    • Analog Input

    The HX6020 module offers 8 analog inputs for reading RTDs and resistances that can be individually configured according to the desired scale

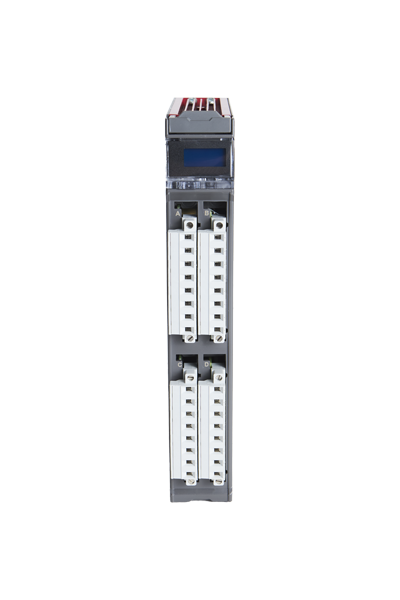

    HX6065

    HX6065

    • Current Input
    • Input Voltage
    • Analog Output

    The HX6065 module offers three AC voltage measurement inputs, an additional AC voltage input for synchronization, four AC current measurement inputs, and four analog outputs for control that can be individually configured as voltage or current outputs, in different scales.

    HX8300

    HX8300

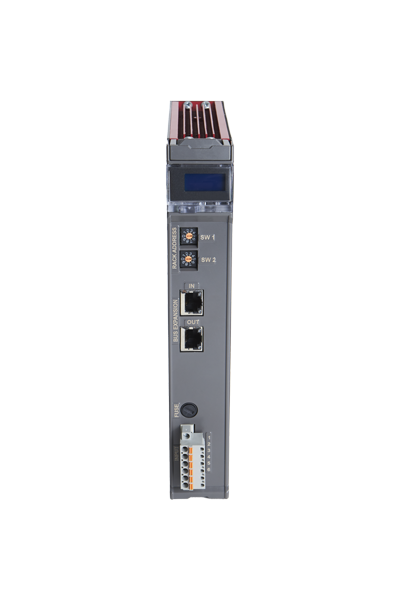

      The HX8300 module provides up to 60 W of 24 Vdc power to power other Hadron Xtorm series modules through the Hadron Xtorm Series racks.

      HX8320

      HX8320

        The HX8320 module provides up to 60 W of 125 Vdc power to power other Hadron Xtorm series modules through the Hadron Xtorm Series racks.

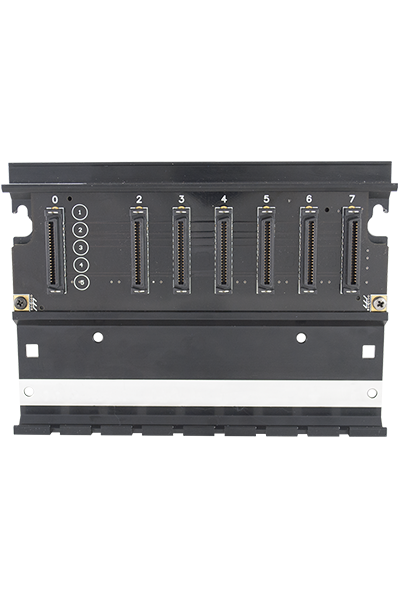

        HX9001

        HX9001

          The HX9001 frame has 9 positions and simple installation and maintenance procedures

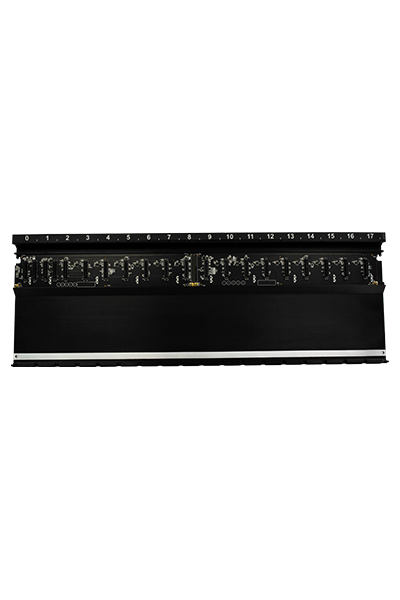

          HX9003

          HX9003

            The HX9003 frame has 18 positions and simple installation and maintenance procedures

            HX9102

            HX9102

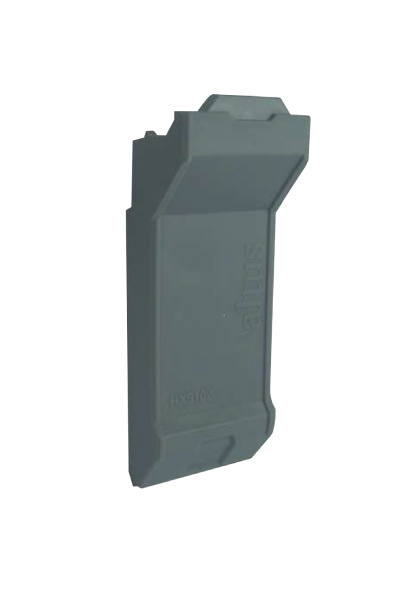

              The HX9102 module consists of a protective cover for connectors from the Hadron Xtorm Series racks.

              HX9401

              HX9401

              • 6 Terminals

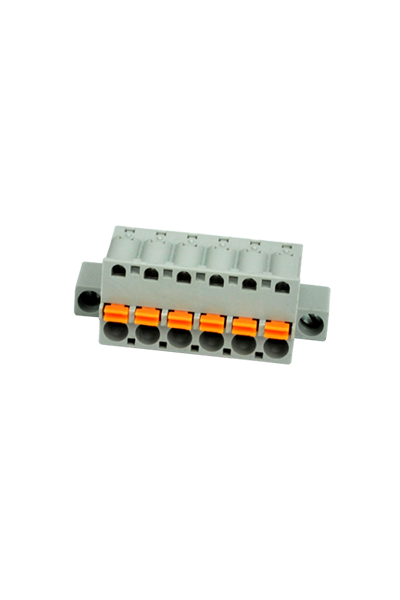

              6-terminal connector

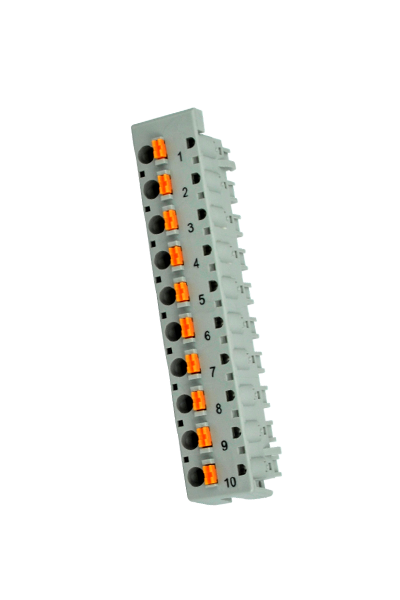

              HX9402

              HX9402

              • 10 Terminals

              10-terminal connector

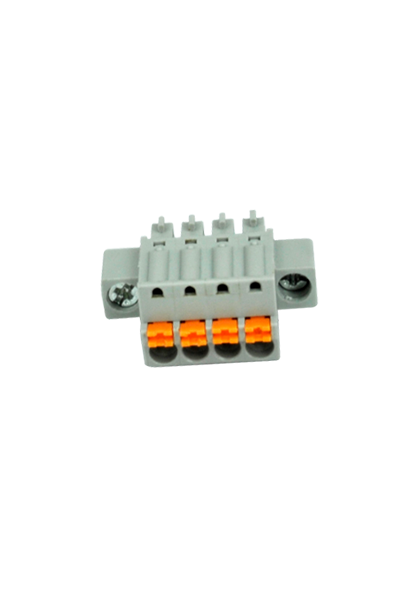

              HX9405

              HX9405

              • 4 Terminals

              4-terminal connector

              Nenhum produto encontrado.
